Description of tft color display

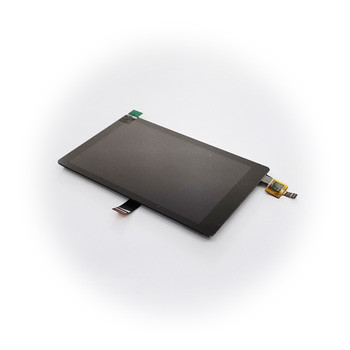

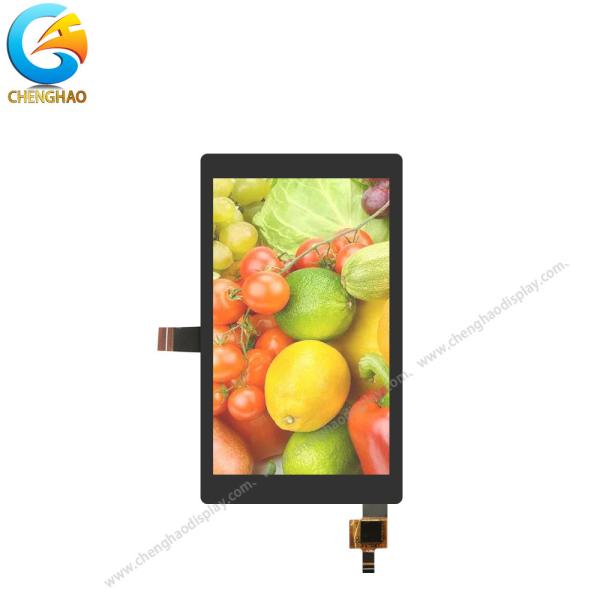

Chenghao Lcd CH400WV22A-CT is a full color touch screen tft lcd
with high cost performance. The outline size and TFT active area
are 61(W)×102(H)×3.74(T) mm, 51.84(W)×86.4( h). The display module
is mainly composed of a capacitive touch panel, an lcd panel, a
driver IC, an FPC and a backlight assembly.
There is a 3.97 inch display area of this tft display screen, which
can display video images with 480*800 resolution and 16M colors.
Due to the adoption of IPS display technology, the viewing angle of
this capacitive touch module is extended to 85/85/85/85, which
means that users can get clear and bright visual images when
viewing the display at any angle.
At the beginning of the design, our engineers fully considered the
complexity of the use environment, and its combination units are
made of accessories and materials with wide temperature resistance,
which makes it still perform well when working in an environment of
-20~+70°C .
Specification of small tft lcd displays
| Product No | CH400WV22A-CT |
| Number of dots | 480*800 |
| Supplier Name | Chenghao Lcd |
| Supplier Type | Manufacture |
| Support for Customized Content | BL,TP,Interface,Anti-glare,FPC |
| Life Time | 20000 H |
| FPC Pin Number | 25 pin |
| Display Area Size | 3.97 inch |
Services of color tft lcd screen
Pre-Sales Services:
Our team designs and develops solutions based on the unique
requirements of each customer. We provide 24-hour service and will
respond to every inquiry within 12 hours.
Post-Sales Services:
We provide customer service through Skype, phone, or email and
provide videos or drawings to help solve any issues.
Our remote control service through the internet allows for
real-time assistance and shortened problem-resolution time.
Our dedicated engineers ensure quick responses to any customer
inquiry.
Application Of TFT LCD Module
1. Industrial machinery and equipment: CNC machine tools, portable
electric tools, etc.
2. Medical equipment: beauty instrument, ventilator,
electrocardiogram equipment, etc.
3. Instrumentation: automation instrumentation, electrical
instrumentation, optical instruments, component analyzers,
automotive instrumentation, electrical equipment, audio-visual
equipment, cameras, etc.
4. Household equipment: smart refrigerators, coffee machines,
temperature control equipment, etc.
5. Vehicle equipment: GPS navigator, headrest display, central
control display, etc.
6. Office equipment: punch card machine, printer, face recognition
equipment, etc...
List of our TFT Lcd models
The following list is some of our product models, if you can't find
the product model that meets your requirements in the list, you can
contact our customer service for consultation!
| Size | Part No. | Shape | Resolution | Size | Part No. | Shape | Resolution |
| 1.1" | CH110T001A | Square screen | 96(RGB)*96 | 4.3" | CH430WQ18A | horizontal screen | 480*3(RGB)*272 |
| 1.14" | CH114QV01A | vertical screen | 135(RGB)×240 | 4.3" | CH430WV15A | vertical screen | 480*(RGB)*800 |
| 1.3" | CH130QV03A | Square screen | 240*(RGB)*240 | 4.41" | CH441FH01A | horizontal screen | 1920*(RGB)*1080 |
| 1.44" | CH144QQ16A | Square screen | 128*(RGB)*128 | 4.5" | CH450FW02A | vertical screen | 480*(RGB)*854 |
| 1.47" | CH147QV01A | vertical screen | 172*(RGB)*320 | 5.0" | CH500WQ03A | horizontal screen | 480*(RGB)*272 |
| 1.5" | CH150DS01A | horizontal screen | 480*240 | 5.0" | CH500WV05B | horizontal screen | 800*(RGB)*480 |
| 1.54" | CH154QV05A | Square screen | 240*(RGB)*240 | 5.0" | CH500FW09A | vertical screen | 480*(RGB)*854 |
| 1.8" | CH180QQ09B | vertical screen | 128*(RGB)*160 | 5.5" | CH550FH01A | vertical screen | 1080*(RGB)*1920 |
| 1.9" | CH190QV01A | vertical screen | 170*(RGB)*320 | 7.0" | CH700WV03A | horizontal screen | 800*(RGB)*480 |
| 2.0" | CH200QV11A | vertical screen | 320*3(RGB)*240 | 7.0" | CH700WS16A | horizontal screen | 1024*3(RGB)*600 |
| 2.1" | CH210WV01A | Round Screen | 480*(RGB)*480 | 7.0" | CH700WX06A | vertical screen | 800*(RGB)*1280 |
| 2.2" | CH220QV06A | vertical screen | 240(RGB)*320 | 7.0" | CH700FH01B | vertical screen | 800*(RGB)*1280 |
| 2.31" | CH231QV07A | horizontal screen | 320*(RGB)*240 | 8.0" | CH800WX02A | vertical screen | 800*(RGB)*1280 |
| 2.4" | CH240QV58A | vertical screen | 240*(RGB)*320 | 8.0" | CH800FH03A | vertical screen | 1200*(RGB)*1920 |
| 2.8" | CH280QV36A | vertical screen | 240*3(RGB)*320 | 9.0" | CH900WV01A | horizontal screen | 800*(RGB)*480 |
| 3.5" | CH350HV40A | vertical screen | 320*(RGB)*480 | 9.0" | CH900WS01A | horizontal screen | 1024*(RGB)*600 |
| 4.0" | CH400WV22A | vertical screen | 480*800 | 10.1" | CH101WS01A | horizontal screen | 1024*(RGB)*600 |
