55pin Small LCD Touch Screen Module 4.3 Inch 480x800 Resolution
All Viewing Angle Monitor Lcd 4.3 Inch 480x800 Resolution 55pin
Quick details of 4.3 inch tft lcd module
| Manufacture Name | Chenghao Optoelectronic |
| Enterprise Type | Industry and Trade Integration |
| Company location | Shenzhen, China |
| Supply Ability | 300K pcs/month |
Manufacturer: Chenghao Lcd
Module Name: 4.3 inch tft lcd display
LCD type: 4.3”TFT
Resolution: 480*800 dots
Viewing Direction: 80/80/80/80 (all viewing angles)
Driver IC TFT: NT35510
Interface: SPI, MCU, RGB (support Multi-interface)
Touch Panel Type: Resistive Touch Panel
Luminance: 350 cd/m2 High Brightness
Back Light: 8 White LEDs in serial
Life Time: 20000 hours
Application fields: industrial equipment, medical equipment, office
equipment, laboratory equipment, etc.
Certificate: RoHS, CE
MOQ: 1 pcs
Delivery period: 7-15 working days
Payment method: T/T
Specification of 800x480 display
Module No.: CH430WV17A-T
Display mode: IPS / Transmissive / Normally Black
Module size: 61.56(W)×104.65(H)×3.25(T) mm
Active area: 56.16(W)×93.6(H)mm

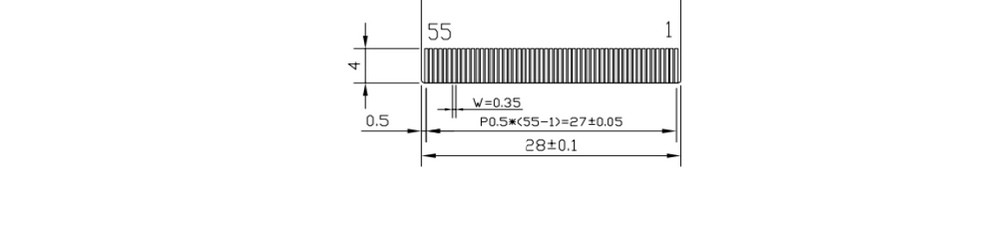

FPC Pin NUmber: 55pin
Operating temperature: -20 ~ +70 ℃ (wide temperature)
Storage temperature: -30 ~ +80 ℃
Touch Panel Interface: usb
Backlight Color: White
Application Case: Children's Accompanying Reader
Description of lcd touch display
The CH430WV17A-T is a 4.3 inch TFT LCD display module manufactured
by Chenghao Lcd, which is an industry and trade integration
enterprise located in Shenzhen, China. With a resolution of 480*800
dots and all viewing angles of 80/80/80/80, this display module can
provide clear and stable images from various directions. It adopt
IPS display mode, support all viewing angle, and the driver IC TFT
is NT35510. With a compact module size of
61.56(W)×104.65(H)×3.25(T) mm and an active area of
56.16(W)×93.6(H)mm, it is suitable for various applications such as
industrial equipment, medical equipment, office equipment,
laboratory equipment, etc. The CH430WV17A-T is also equipped with a
resistive touch panel interface (usb) and 8 white LEDs in serial
for backlight. The backlight color is white, and the life time of
backlight is 20000 hours.
Feature of lcd touch screen
- All viewing angles of 80/80/80/80
- Wide Temp of -20~ +70℃
- Suitable for various applications
- Resistive touch panel interface (usb)
- Support Customized Service
- Backlight with a life time of 20000 hours
- RoHS and CE certified
Application of custom lcd display module
The CH430WV17A-T can be used in various fields, including:
Industrial equipment
Medical equipment
Office equipment
Laboratory equipment
It can also be used in specific application cases such as
Children's Accompanying Reader.
Our advantages
High-quality products with RoHS and CE certification
Fast delivery within 7-15 working days
Flexible payment method through T/T
Excellent packaging for product safety
Responsive customer service
FAQ
Q: What is the MOQ of CH430WV17A-T?
A: The MOQ is 1 pcs.
Q: What is the payment method?
A: The payment method is T/T.
Q: What is the delivery period?
A: The delivery period is 7-15 working days.
Q: What is the backlight life time?
A: The backlight life time is 20000 hours.
Q: What is the viewing direction of CH430WV17A-T?
A: The viewing direction is 80/80/80/80 (all viewing angles).
