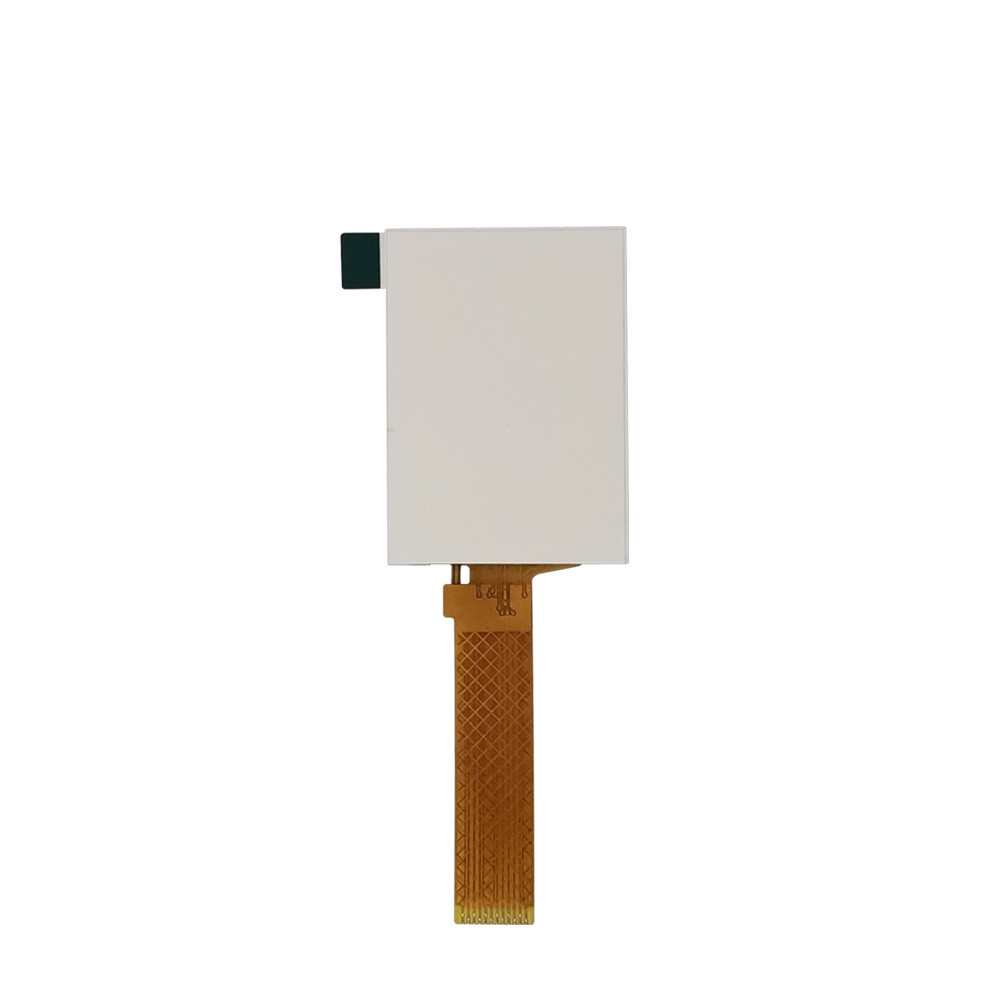

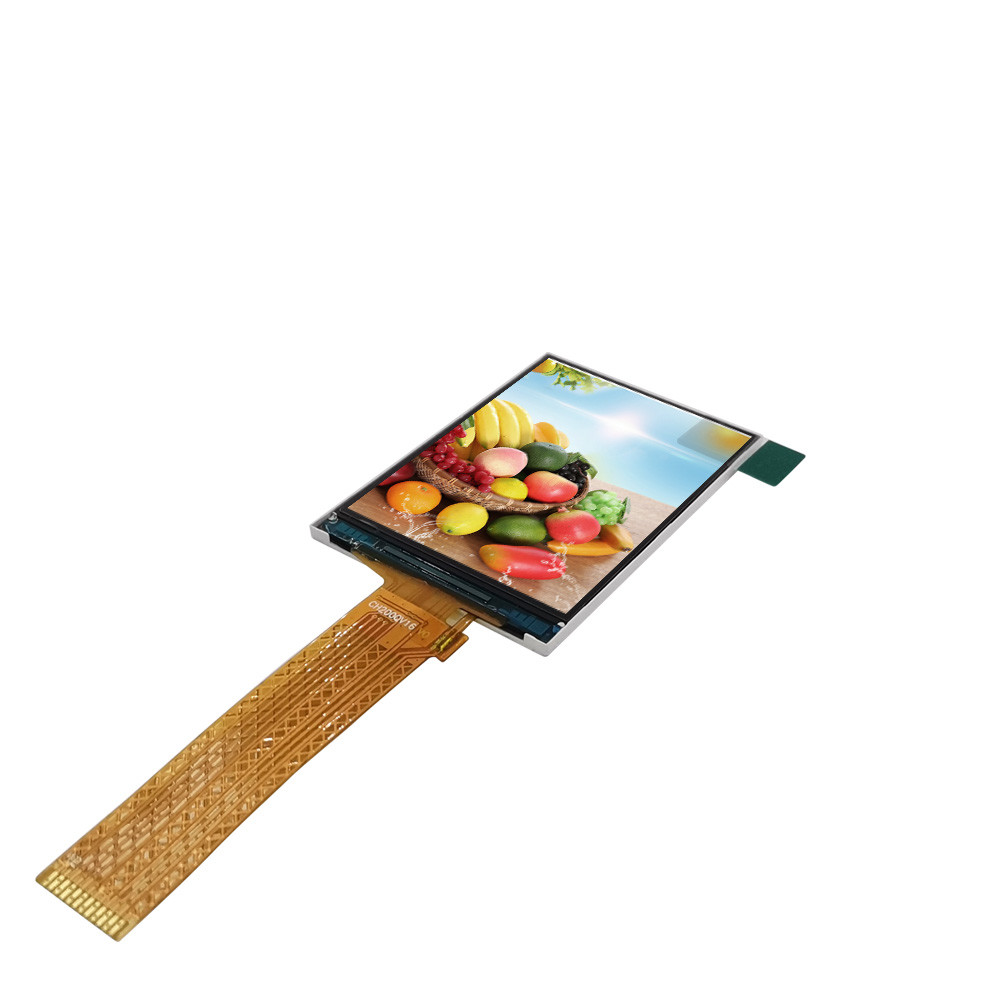

Custom 2.0 Inch TFT IPS LCD Display 240*320 12pin 4 Line 8bits SPI
2.0 Inch Ips Tft Display 240*320 12pin 4 Line 8bits SPI
The Main Parameters of lcd panel screen
| Part No | CH200QV16A |
| Resolution | 240*320 dots |
| Viewing Direction | 80/80/80/80 |
| Interface | SPI |
| Outline Size | 34.6(W)×47.8(H)×2.0(T) mm |
Active area | 30.6(W)×40.8(H) mm |
Operating temperature | -20 ~ +70 ℃ |
Description of colorful lcd panel
Chenghao Optoelectronic's CH200QV16A is a small LCD module equipped
with a 2-inch vertical screen display area, the brightness is 300
cd/m2, and it can display 240*320 pixel video or pictures. The LCD
screen in this display module is designed with IPS/Transmissive
display mode, which not only ensures high resolution but also
supports IPS free viewing angle. In addition, this tft display ips
can adapt to wide temperature environment and can be used at
-20~+70 The normal operation is more than 30000H in the environment
of Celsius.
Specification of ips lcd panel
Keywords : ips lcd module
Manufacture: Chenghao Optoelectronic
Module No: CH200QV16A
Number of Dots: 240(RGB)*320
Luminance: 300 nits (optional)
Color: 262K/65K
Contrast: 800
Module Size:34.6(W)×47.8(H)×2.0(T) mm
Active area: 30.6(W)×40.8(H) mm
Dot pitch: 0.1275(W)×0.1275(H) mm
Interface: 4-line 8bits SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 3 White LED In Parallel
Color filter array: RGB vertical stripe
Display mode: IPS / Transmission / Normally black
Viewing Direction: 80/80/80/80
Driver IC: ST7789V
Customized service:
1. Backlight brightness: 200~2000 cd/m2
2. TFT Interface Type: LVDS/SPI/MCU/RGB/MIPI/HDMI....
3. Screen surface treatment: anti-glare...
4. FPC: shape structure, pin number
5. Touch Type: capacitive touch, resistive touch
6. Viewing Direction: 6 O'clock, 12 O'clock, 80/80/80/80,
85/85/85/85
7.Sunlight Readable
About Chenghao Optoelectronic
Chenghao Optoelectronic is a vertically integrated company located
in Shenzhen, China, specializing in the production and distribution
of TFT-LCD products. With a monthly supply capacity of 300,000
units, the company offers a comprehensive TFT-LCD solution for
customers.
Chenghao Optoelectronic is well-known for its high-quality and
reliable products, which have received positive feedback from
customers worldwide. The company is committed to sustainable
development and has completed the ISO9001 certification. All of its
products are provided with CE, FCC, RoHS certificates to ensure
compliance with international standards.
To provide better service to customers, Chenghao Optoelectronic has
established a professional and one-on-one online customer service
team, which is available 24/7. Additionally, the company has a team
of engineers who provide remote online technical support to
customers. can also enjoy a one-year warranty on all products.
One of the advantages of Chenghao Optoelectronic is that customers
can enjoy the factory direct price, while the company's engineers
can directly communicate with customers to participate in the
development of customer display solutions and help solve customer
problems. Moreover, the long-company provides stable supply.
In summary, Chenghao Optoelectronic is a high-quality and reliable
TFT-LCD manufacturer and Supplier, offering a comprehensive TFT-LCD
solution to customers worldwide. With its commitment to
sustainability and excellent customer service, the company is
confident of meeting its needs customers.
FAQ
1. What are the advantages of your company's products?
Our advantages lie in long-term and stable supply, factory direct
selling price, engineers directly connecting with customers,
providing one-stop liquid crystal display solutions, etc. At the
same time, our product quality has also been affirmed and trusted
by customers.
2. Is your product quality guaranteed?
All of our products have obtained CE, FCC, RoHS certificates and
passed ISO9001 certification. We have a professional engineer team
to provide customers with remote online technical support to ensure
that customers get the best experience when using our products.
3. How about your service?
Our service is very professional, with one-on-one, 24-hour online
customer service team, to provide customers with high-quality
pre-sales, sales and after-sales services. We also provide
customers with customized liquid crystal display solutions to
ensure that customers' needs are fully met.
4. How about your supply ability?
Our supply capacity is very strong, and we can provide 300KPCS of
products per month. At the same time, we have our own TFT Lcd
manufacturing plant, R&D technical department team, and sales
team to ensure that our product supply is fully guaranteed.
5. How about the price of your products?
The price of our products is very competitive because we have the
advantage of self-production and direct sales. At the same time, we
also provide customers with customized liquid crystal display
solutions to meet the different needs of customers.
6. Can I visit your factory?
Thank you very much for your attention, our factory is located in
Shenzhen, China, welcome customers to visit us.
7. Can your engineers provide technical support?
Yes, our engineers can provide customers with remote online
technical support to ensure customers get the best experience when
using our products.
8. How about your after-sales service?
Our after-sales service is very good, we can provide one-to-one,
24-hour online customer service team to provide customers with
high-quality after-sales service. We also provide customers with
customized liquid crystal display solutions to ensure that
customers' needs are fully met.
9. Can your product price be discounted?
We attach great importance to the needs of customers. If you have
needs, we can provide preferential product prices according to the
specific conditions of customers.
