3.5 Inch Serial Tft Lcd Display Module Mini Dot Matrix Color Tft
Touch
Screen With Mcu / Spi + Rgb Multi-Interface
| LCD type | 3.5’’TFTWith RTP |
| Dot arrangement | 320(RGB)×480 dots |
| Color filter array | RGB vertical stripe |
| Display mode | IPS/ Transmission/ NormallyBlack |
| Viewing Direction | 80/80/80/80 |
| Driver IC | ILI9488 |
| Module size | 56.54(W)×84.96(H)×3.5(T) mm |
| Interface | SPI,MCU,SPI+RGB |
| Luminace | 280cd/m2 |
| Active area | 48.96(W)×73.44(H)mm |
| Dot pitch | 0.153(W)×0.153(H)mm |
| Interface | 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit8080system interface
16-/18-bitRGB interface |
| Operating temperature | -20~+70 ℃ |
| Storage temperature | -30~+80 ℃ |
| Back Light | 6 White LED inparallel |
| Weight | TBD g |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality
Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
*ChengHao Display model CH350HV40A-T is a color active matrix thin
film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a
switching device. This model is composed
of a TFT LCD panel, a driving circuit, a high brightness
back-light, a resistance touch screen and FPC.
*The TFT display is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This TFT LCD has a 3.5
(3:2) inch diagonally measured
active display area with HVGA (320 horizontal by 480 vertical
pixel) resolution.
*The driver used for this project is the ILITEK ILI9488 or
compatible and can display 262K colors by 18 bit
R.G.B. signal input. The driver is mounted on the glass and the
interconnection via FPC including com
-ponents to drive the display module. Support SPI, MCU, SPI + RGB
interface.
*In addition, FPC can also be customized according to customer
requirements, such as modifying FPC
structure, interface definition, etc.
*RoHS Compliance & Halogen Free.

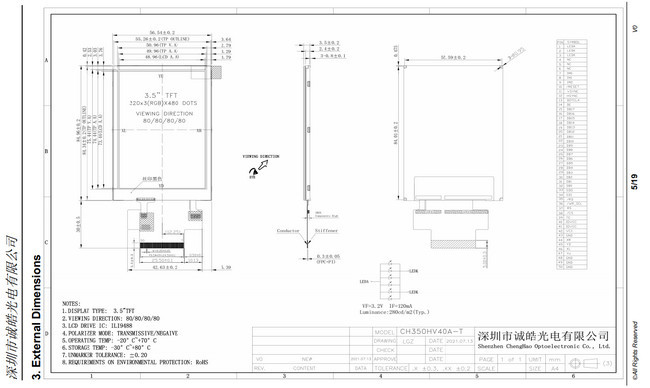

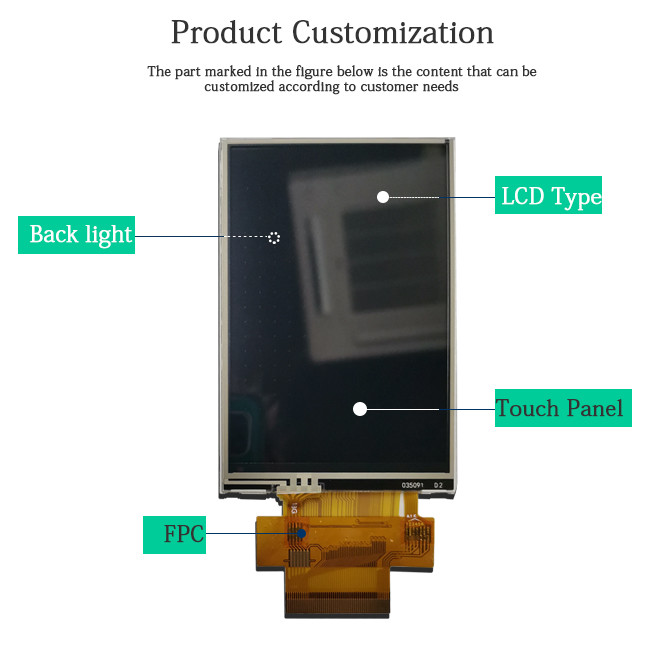

About Customization:
all of our products can be with or without touch, whatever you
choose. Backlight brightness and FPC
interface can be customized according to your requirements.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
