2.4inch Lcd Module Tft Low Power Mini RGB Vertical Stripe Colour
Lcd Display Module With ST7789V Ic
| Driver IC | ST7789V |
| Module size | 42.72(W)×60.26(H)×3.4(T) |
| Active area | 36.72(W)×48.96(H) |
| Dotpitch | 0.153(W)×0.153(H) mm |
| Interface | 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit8080-seriessystem interface
SPI +6-/16-/18-bitRGB interface |
| Operating temperature | -20~+70 ℃ |
| Storage temperature | -30~+80 ℃ |
| Back Light | 4White LED InParallel |
| Weight | TBD g |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality
Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time

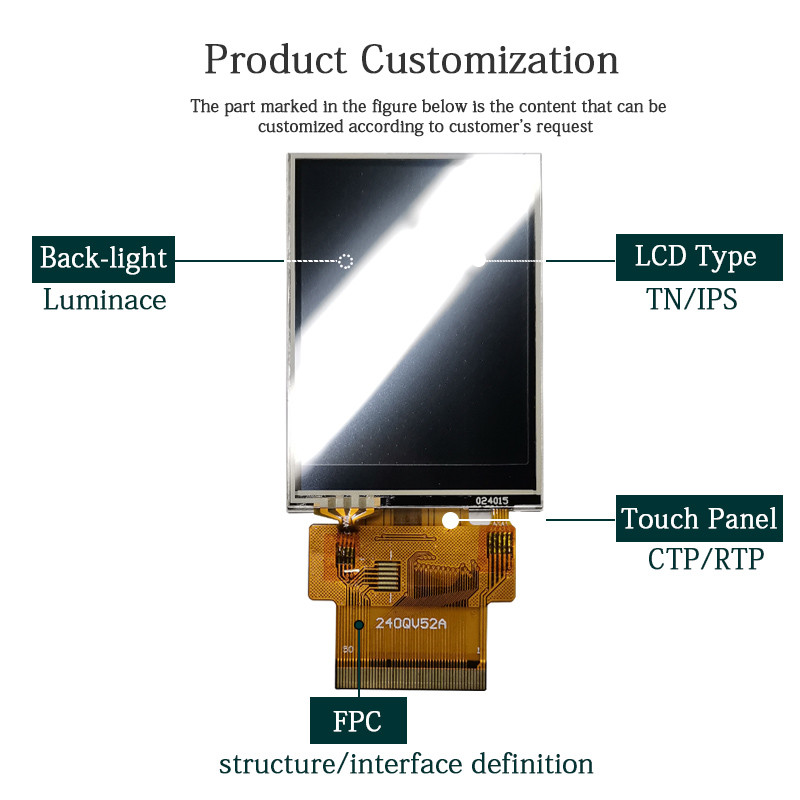

About Customization:
all of our products can be with or without touch, whatever you
choose. Backlight brightness and FPC
interface can be customized according to your requirements.
ChengHao Display model CH240QV52A-T is a color active matrix thin
film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a
switching device. This model is com
-posed of a TFT LCD panel, a driving circuit, a high brightness
back-light, a resistive touch screen
and FPC.
The TFT display is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that
uses amorphous silicon TFT as a switching device. This TFT LCD has
a 2.4 (3:4) inch diagonally
measured active display area with QVGA (240 horizontal by 320
vertical pixel) resolution.
The driver used for this project is the Sitronix ST7789V or
compatible and can display 262K colors
by 18 bit R.G.B. signal input. The driver is mounted on the glass
and the interconnection via FPC
including components to drive the display module. Support SPI, MCU,
SPI + RGB interface.
In addition, FPC can also be customized according to customer
requirements, such as modifying
FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive
|
