800x480 Dot Matrix Lcd Display Module 24 Bit Rgb Interface White
LED Backlight Type
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 7.0’’TFT | -- |
| Dot arrangement | 800×3(RGB)×480 | dots |
| Color Pixel Arrangement | RGB vertical stripe | -- |
| Display Mode | TN / Transmissive/Normally white | -- |
| Surface Treatment | Anti-Glare, Hardness:3H | -- |
| Viewing Direction | 6o’clock | -- |
| Module size | 164.9(W)×100.0(H)×5.7(T) | mm |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality
Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
ChengHao Display model CH700WV02A is a color active matrix thin
film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a
switching device. This model is com
-posed of a TFT LCD panel, a driving IC, a high brightness
back-light and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active
display area with WVGA (800
horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M
colors by 24 bit R.G.B. signal
input. The driver is mounted on the glass and the interconnection
via FPC including components
to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer
requirements, such as modifying
back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

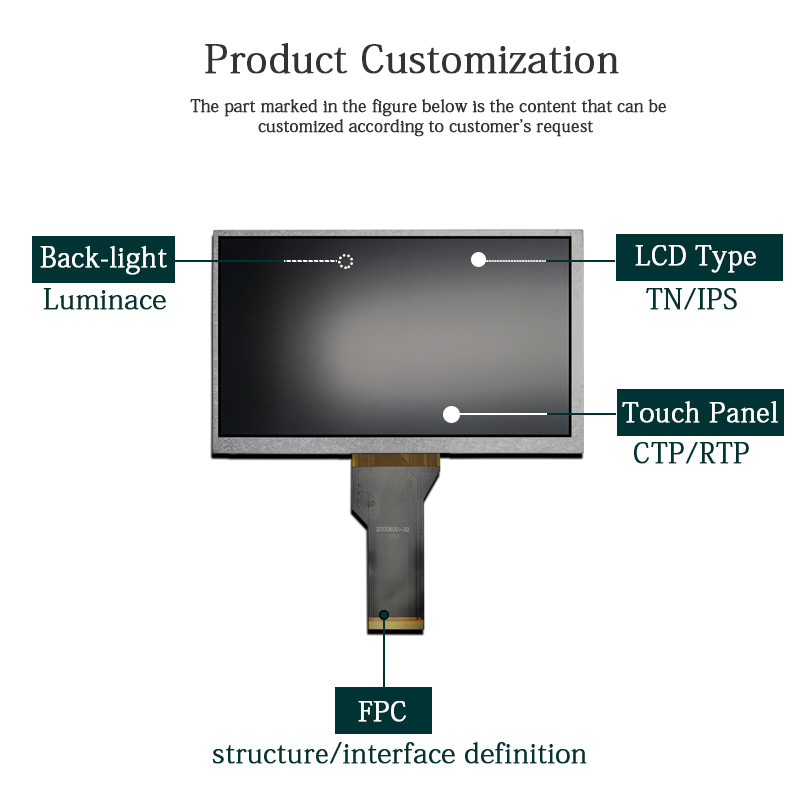

About Customization:
all of our products can be with or without touch, whatever you
choose. Backlight brightness and FPC
interface can be customized according to your requirements.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive
|
