7inch 800*480 Small LCD Touch Screen With Capacitive Touch Panel
7inch TFT LCD Touchscreen Display 800*480 Resolution With
Capacitive Touch Panel
1. Specification
| ITEM | STANDARD VALUES | UNITS |
| Product Name | 7inch TFT LCD Touchscreen Display | -- |
| MODEL NO. | CH700WV01C-CTC | -- |
| Module type | 7"TFT + CTP | -- |
| Display Mode | TN/Transmissive/Normally white | -- |
| CTP type | P+G | -- |
| Number of Dots | 800*3(RGB)*480 | Pixel |
| Viewing Direction | 12 o'clock | -- |
| Gray Scale Inversion Direction | 6 o'clock | -- |
| Module size | 164.9(W)*100.0(H)*4.68(T) | mm |
| TFT Active area | 154.08(W)*85.92(H) | mm |
| TFT Dot pitch | 0.1926(W)*0.1790(H) | mm |
| TFT Interface | 24-bit Parallel RGB Interface | -- |
| CTP Interface | I2C | -- |
2. Feature
Module features
- Interface:
SPI / RGB/MIPI/MCU/LVDS (optional)
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)
- BLU:
7*LED in parrel , VBL=2.8~3.3 V;
Can be designed as requirements.
- LCM outline dimension:
164.9(W)×100.0(H)×4.68(T) mm
Can be customized as requirements.
Lens features
-Shape : Irregular and hole
-Color: Silk printing, Logo
-Glass Materials: Glass, PMMA
-Treatments: AG, AR, AF, Anti-explosion
-Thickness: 0. 55mm.0.7mm
1.0mm, 1.1mm, 1.8mm, 2.omm,
3.0mm, 4. 0mm, 5. 0mm, 6.0mm
Sensor features
-Materials: Glass, Film, Film+Film
FPC: Shape design optional
IC: EETI, ILITEK, Goodix,
Focalteck, Cypress
Interface: 12C, USB, RS232
Thickness: 0.005mm, 0.125mm,
0.4mm, 0.55mm, 0.7mm, 1.1mm
3. Description
CH700WV01C-CTC is a TFT-LCD module. It is composed of a TFT-LCD
panel, driver IC, FPC, a back light unit , and capacitive touch
panel . The 7.0 inch display area contains 800*480 pixels and can
display up to 262K colors. This product accords with RoHS
environmental criterion.

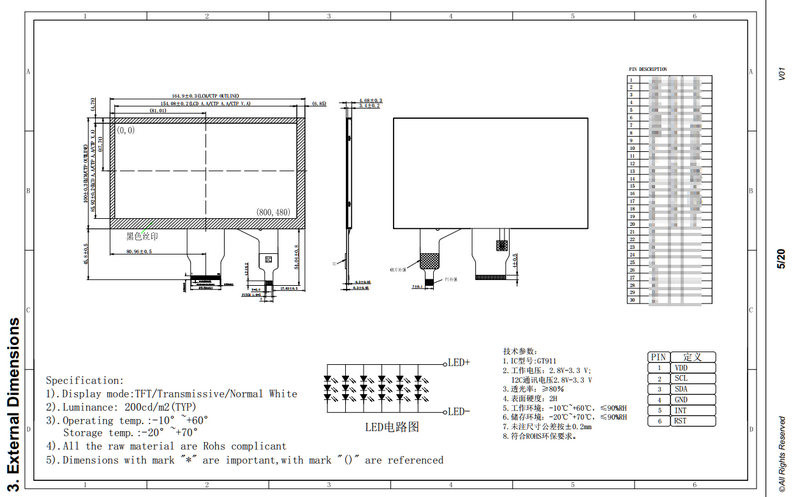

4. Drawings
5. Application
Our products are widely used for POS & PDA LCD Touch Display ,
Smart Home color LCD Module ,Medical applicance ,Manual control
device and Industrial , Automotive Lcd Module display , Elevator ,
meter and so on.
