1.47 Inch Small LCD Touch Screen IPS 172*320 With Driver IC
ST7789V3
1.47 Inch IPS Tiny Lcd Screen 172*320 Resolution Tft Module With
Driver IC ST7789V3
1. Specification
| Product Name | 1.47 Inch IPS Tiny Lcd Screen |
| MODEL NO. | CH147QV01A |
| Module type | 1.47"TFT |
| Display Mode | IPS/ Transmissive / NormallyBlack |
| Number of Dots | 172(RGB)×320 |
| Viewing Direction | 80/80/80/80 |
| Module size | 19.39(H)×36.28(V)×1.46(T) mm |
| TFT Active area | 17.3892(H)×32.352(V) mm |
| TFT Dot pitch | 0.1011(H)×0.1011(V) mm |
| Interface | 4-lines_8bitSPI |
| Backlight Type | White LED |
| Color filter array | RGB vertical stripe |
2. Description
* 1.47 Inch IPS Tiny Lcd Screen
* CH147QV01A is a Transmissive type color active matrix liquid
crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC [ Driver IC ST7789V3
], FPC, backlight [ 3White LED ].
* It is 172(RGB)x320 resolution TFT LCD module.
* Backlight with different brightness options from 200 - 1500cd/m2
are available [ Optional ].
* This model also supports the installation of touch panels .
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a
recommendation.

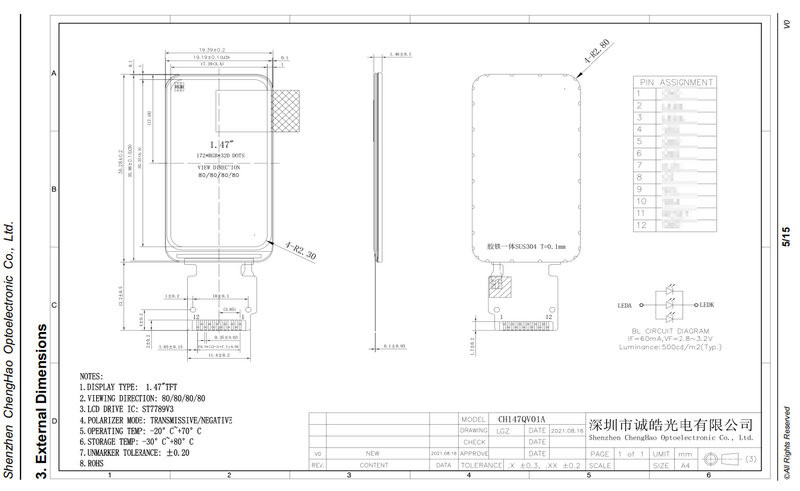

3. Drawings
Notes:
(1) Display Type : 1.47" TFT
(2) Viewing Direction :80/80/80/80
(3) Lcd Drive IC :ST7789V3
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Application
