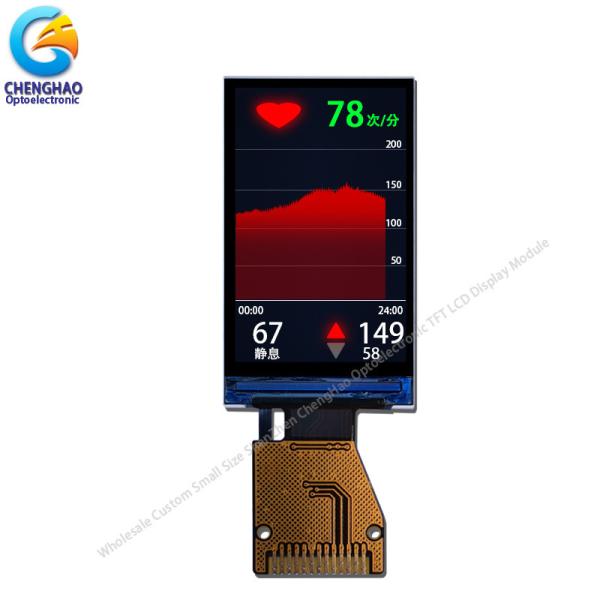

1.14" ST7789V 135240 LCD Display Module With Free Viewing Angle
1.14" Thin Lcd Panel ST7789V 135240 Tft Monitor With Free Viewing
Angle
1. Specification
| Product Name | 1.14" Thin Lcd Panel | -- |
| LCD type | 1.14’’TFT | -- |
| Dot arrangement | 135(RGB)×240 | dots |
| Color filter array | RGB vertical stripe | -- |
| Display mode | IPS/ Transmissive / NormallyBlack | -- |
| Viewing Direction | 80/80/80/80 | -- |
| Driver IC | ST7789V | -- |
| Module size | 17.6(H)×31.0(V)×1.6(T) | mm |
| Active area | 14.864(H)×24.912(V) | mm |
| Dotpitch | 0.1101(H)×0.1038(V) | mm |
2. Description
* CH114QV01A is a Transmissive type color active matrix liquid
crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 135(RGB)x240 resolution TFT LCD module.
* Backlight with different brightness options from 200 - 1500cd/m2
are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a
recommendation.
3. Drawings
Notes:
(1) Display Type : 1.14-inch TFT
(2) Viewing Direction : Free viewing angle
(3) Lcd Drive IC : ST7789V
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Application
Our products are used in a wide range of applications, such as
electronic equipment, medical equipment,
industrial equipment and smart home.
5. Our Product
(1). Module
* Size:

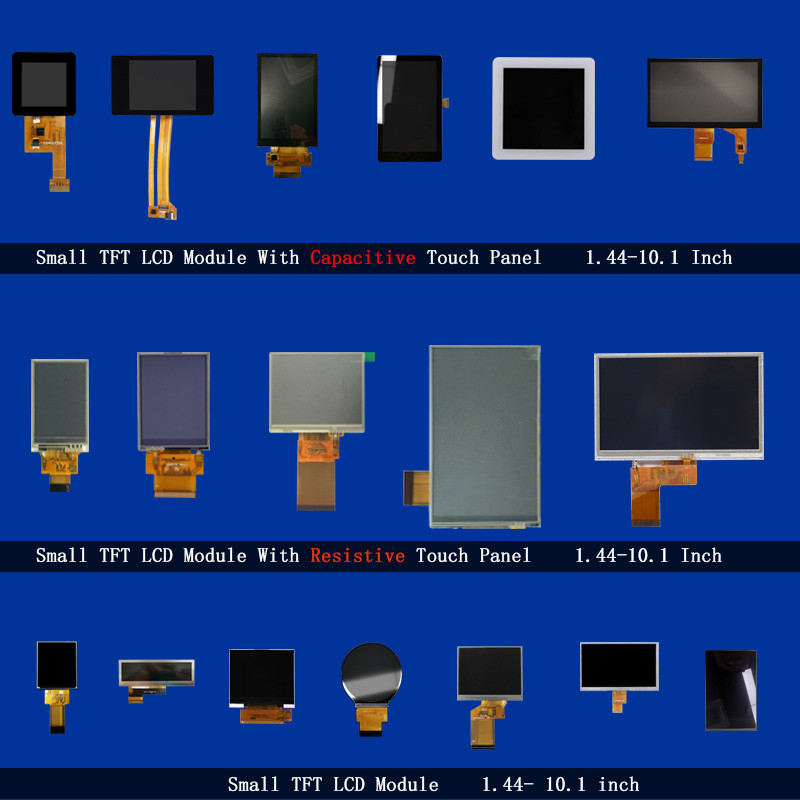

1.14"/1.47"/1.44"/1.50"/1.54"/1.77"/1.80"/2.0"/2.1"/2.31"/2.40"/2.80"/3.50"/3.90"/3.95"/3.97"/3.98"/4.0"/4.3"/5.0"/5.5"/6.0"/7.0"/8.0"/9.0"/10.1"/12.3"
