6.86 Inch 262k IPS Touchscreen Display 480x1280 Dots HD LCD Touch Panel

6.86 Inch Ips Touchscreen Display 262k 480x1280 Dots HD LCD Module With Capacitance Touch Panel

1. Specification

2. Description

3. Quick Detail

* LCD name: 6.86 Inch Ips Touchscreen Display 262k 480x1280 Dots HD Lcd Module With Capacitance Touch Panel
* Part No.: CH068HWH12D
* Size.: 6.86"
* With Driver Board : Yes
* With touch panel or not: Yes
* Touch type: Capacitive Touch Panel
* Display type: TFT+CTP
* Display colors: 262K ( Optional )
* Pixels : 480*1280 dots
* Viewing direction: All Viewing Angle
* Display mode: IPS / Transmissive / Normally Black
* TFT / CTP Active Area: 6.022cm×16.059cm
* Luminance: 450 Nits
* Contrast: 800:1
* Interface type: 18bits RGB
* Backlight type and color: LED backlight / white

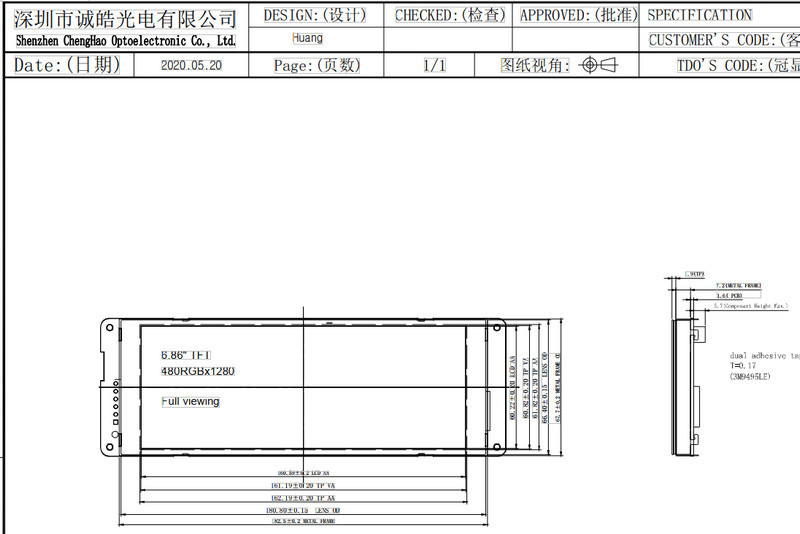

3. Drawings

Notes:
(1) Display Type : 6.86" TFT+TP
(2) Viewing Direction : 80/80/80/80
(3) Polarizer Mode : IPS/ Transmissive/ NormallyBlack
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6)) Unmarker Tolerance: ±0.20
(7) Protection : ROHS




4. Application



5. Products quality assurance

(1)High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in
60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
