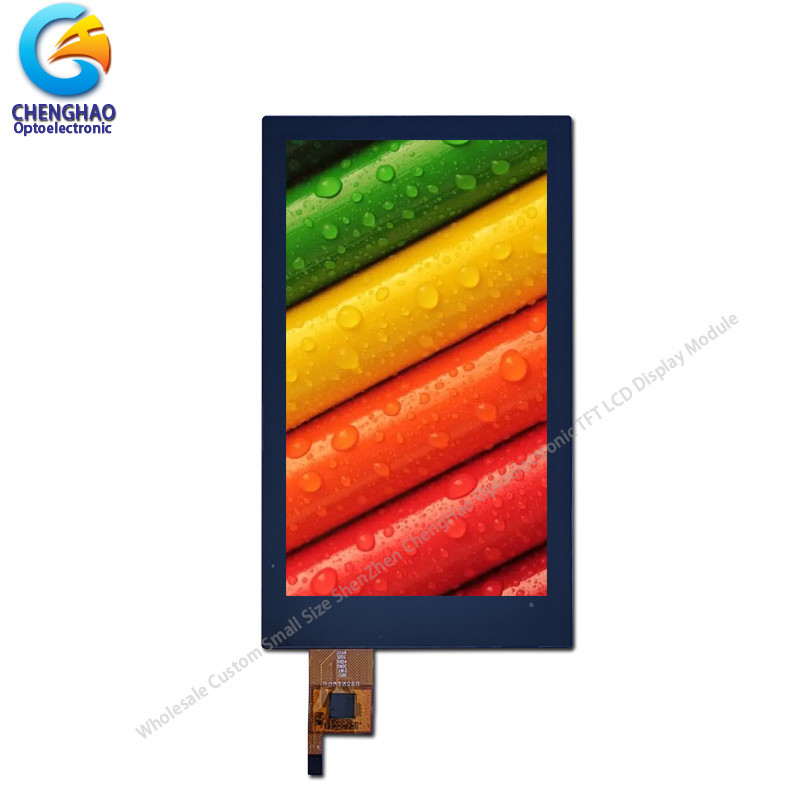

5 Inch IPS Capacitive Touch Screen Wholesale 40 Pin I2c Lcd Display
With CTP Driver IC GT911
1. Specification
| Display Type | 5"TFT-LCD |
| Display model | CH500FW09A-CT |
| Pixel Configuration | RGB Stripe |
| Display Resolution | 480(RGB)x854 dots |
| Overall Size | 75.1W)×128.9(H)×3.625(T) mm |
| Active Area (A.A) | 61.56(W)×109.5255(H) mm |
| Luminace | 450 d/m² |
| Visual Angle | 80/80/80/80 |
2. Description
Item Name : 5 Inch IPS Capacitive Touch Screen Wholesale 40 Pin I2c
Lcd Display With CTP Driver IC GT911
Color : 65K / 262K / 16.7M (optional)
Contrast Ratio : 800:1
Brightness : 450cd/m2
Outline Dimension : 75.1W)×128.9(H)×3.625(T) mm
Active Area : 61.56(W)×109.5255(H) mm
Resolution : 480x854 dots
Dots Pitch : 0.12825(W)×0. 12825(H) mm
Drive Power Supply Voltage : 2.8V~ 3.3V
Viewing Angle : All
Operation Temperature -20°C ~ +70°C
Storage Temperature -30°C~ +80°C
Display Mode TFT LCD
Touch panelType : capacitive touch panel
FPC Lenght FPC connector type
TFT Driver IC : ICN9700
CTP Driver IC : GT911
IC Packaging : COG
3. Drawings
Notes:
(1) Display Type : 5" Tft
(2) Viewing Direction : All
(3) Lcd Drive IC : ICN9700
(4) Polarizer Mode : IPS / Transmissive / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Application
5. Our Service
1. And if it is necessary for you to have technical support in the
process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before
shipment, we will guarantee that the products will be done the
aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in
advance, and the upgrading product can be perfectly compatible with
the old ones.
4. The warranty period of the product is 12 months.
6. FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch
screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support
SPI,MCU,RGB,MIPI.Medium sized displays generally support
LVDS,MIPI,EDP.Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no
stock,it will take some time,and then wait for the materials to
come back to sample. But the customer needs to pay the sample fee
and express fee.
Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass
production,depending on the model and order quantity.
Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a
long time to customers,and second,we will have a large number of
stocks in advance for a long time.
Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they
begin to prepare materials. Delivery is about 5 working days after
receipt of the final payment.
Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.
Q9: How long is your warranty period?
A: We guarantee the quality for one year.
