1.77 Inch Colour Lcd Display Module Sunlight Readable 128x160 Dots
Tft Modules With ST7735
1. Specification
item | value |
Type | TFT LCD |
Display Size | 1.77 inch |
Supplier Type | Original manufacturer |
Place of Origin | China |
Model Number | CH180QQ20A |
Brand Name | Chenghao |
Outline Dimension | 34.7(W)×46.7(H)×3.5(T) mm |
Display area | 28.032(W)×35.04(H) mm |
Number of Pixel | 128x160 dots |
Pixel pitch | 0.219(W)×0.219(H) mm |
Pixel arrangement | RGB Vertical Stripe |
Backlight | 4pcs White LED |
Operating Temperature | -20~70℃ |
Storage Temperature | -30~80℃ |
Contrast | 500:1 |
color | 16.2M/65k/262k (optional) |
2. Description
* CH180QQ20A is a Transmissive type color active matrix liquid
crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight
* It is 128x160 resolution TFT LCD module.
* Backlight with different brightness options from 100 - 1500cd/m2
are available.
* Specific touch panel can be designed & customized.
* Customize LCD Display including lcd backlight, brightness, FPC,
interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a
recommendation.

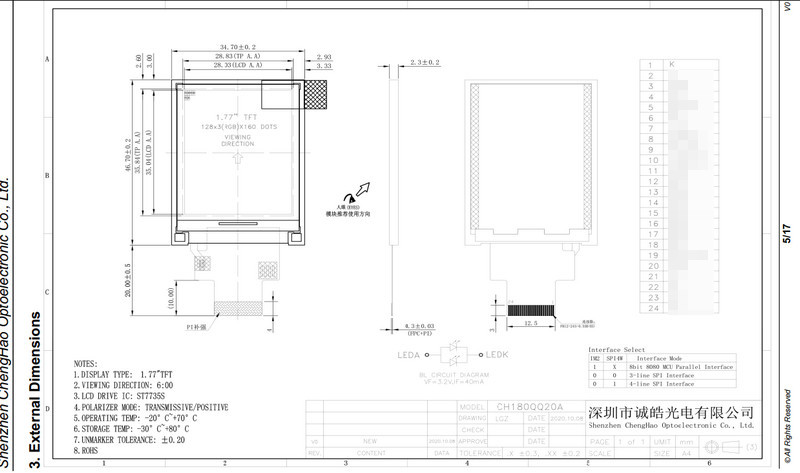

3. Drawings
Notes:
(1) Display Type : 1.77" TFT
(2) Viewing Direction : 6 o’clock
(3) Lcd Drive IC : ST7735
(4) Polarizer Mode : Transmissive/
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Application
5. Our Service
(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be
negotiated.
(5) Provide best pre-sale and after-sale service to you.
6. FAQ
A Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype
or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight
quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special
requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL,
UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo
and sea cargo, direct line, air mail according to customers'
request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for
incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test
procedure, and do 100% FQC to ensure your satisfication.
Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept.
Follow up R.M.A. Items service and upload product fireware and app
for you download.
If you have any technical questions with the goods, please feel
freely to contact our technical support dept, or our sales
directly.
