    240X320 Colour LCD Display Module 20 Pin MIPI Interface 2.8" TFT LCD Screen

    Ask Lasest Price
    Brand Name : Chenghao/Oem
    Model Number : CH280QV33A
    Certification : ROHS、ISO9001、CE
    Price : /
    Payment Terms : T/T
    Supply Ability : 300Kpcs/month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    240X320 Colour LCD Display Module 20 Pin MIPI Interface 2.8" TFT LCD Screen

    240*320 Colour Lcd Display Module 20 Pin MIPI Interface 2.8" Tft |Lcd Screen


    1. Specification of Colour Lcd Module


    Part No.CH280QV33A
    Size2.8 inch
    Resolution240*320 dots
    Outline Dimension50.0(W)*69.2(H)*2.35(T)mm
    Active Area43.2(W)*57.6(H)mm
    InterfaceMIPI
    ICJD9852
    FPC20 PIN
    Working temperature-20°C ~ 70°C
    Storage temperature-20°C ~ 70°C
    Sample delivery time10 days


    2. Description of Small Lcd Display Module


    ChengHao Display model CH280QV33A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

    This TFT LCD has a 2.8 (portrait) inch diagonally measured active display area with 240(RGB)*320 Dot resolution . This TFT LCD Module adopts IPS/Transmissive/Normally Black display mode, which makes it come with 70/70/70 /70 All Viewing Direction .The driver IC used for this project is the JD9852 and can display 262K / 65K (optional) colors by R.G.B. signal input. The driver IC is mounted on the glass and the interconnection via FPC including components to drive the display module. Support MIPI interface.

    In addition, FPC can also be customized according to customer requirements, such as modifying back-light and interface definition, etc.

    RoHS Compliance & Halogen Free.

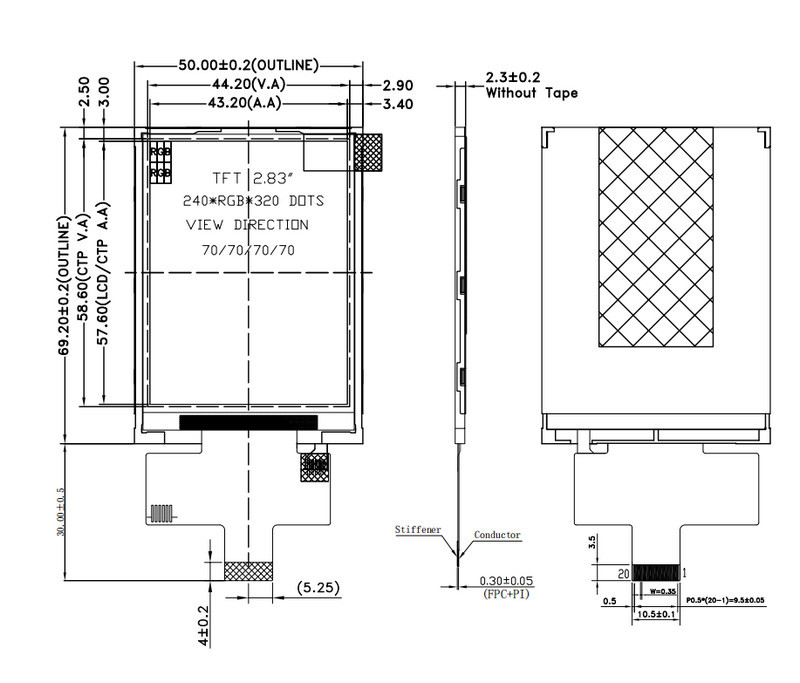

    3. Drawings of Lcd Graphic Module


    Notes:
    (1) Display Type : 2.8" Tft
    (2) Viewing Direction : All
    (3) Lcd Drive IC : JD9852
    (4) Polarizer Mode : IPS / Transmission / Normally Black
    (5) Operating Temp : -20~70 ℃
    (6) Storage Temp : -30~80 ℃
    (7) Unmarker Tolerance: ±0.20
    (8) Protection : ROHS

    240X320 Colour LCD Display Module 20 Pin MIPI Interface 2.8" TFT LCD Screen


    4. Quick Detail of Tft Lcd Display


    * LCD name: 240*320 Colour Lcd Display Module 20 Pin MIPI Interface 2.8" Tft Lcd Screen
    * Part No.: CH280QV33A
    * Size.: 2.8"
    * Support Touch type: Capacitive Or Resistive Touch Panle
    * Display type: 2.8"TFT
    * Display colors: 65K / 262K ( optional )
    * Resolution (pixels): 240*320
    * Viewing direction: All
    * Controller IC: JD9852
    * Display mode: IPS/Transmissive/ Normally Black
    * Overall size: 50.0*69.2*2.35 mm
    * Active Area: 43.2*57.6 mm
    * Luminance: 300 Nits
    * Contrast: 800:1
    * Interface type: MIPI
    * Pin NO.: 20 pins
    * Pin pitch: 0.35 mm
    * Connecting type: Connector
    * Backlight type : 4 LED In parallel
    If=60mA, Vf =3.0~3.3V
    * LED Life span: 20000h


    5. Application of Lcd Screen Module


    Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.


    240X320 Colour LCD Display Module 20 Pin MIPI Interface 2.8" TFT LCD Screen



    6. Our Advantage


    (1) Fully / Semi-automated production line ensure the best quality.

    (2) Custom Design,can specially meet your needs.

    (3) Fast Delivery ,about 20 days for lead time

    (4) Samples available on request; Small MOQ orders can be negotiated.

    (5) Provide best pre-sale and after-sale service to you.
