3.95" Serial Lcd Display Module 40 Pin SPI Interface IPS TFT Lcd Screen

1. Specification of Small Lcd Display Screens

2. Description of Small Tft Monitor

ChengHao Display model CH400WV19A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

This TFT LCD has a 3.95 (Square screen) inch diagonally measured active display area with 480*480 pixel. The driver used for this project is the ST7701 and can display 65k/262k/16.7M colors by inputting RGB signal . The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. The module adopts IPS / Transmissive / Normally Black display mode, which enables it to have a full viewing angle. White LEDs with 8 Pcs are used in the backlight assembly As a backlight, this enables its brightness to reach 350 cd/m2.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and interface definition, etc.

RoHS Compliance & Halogen Free.

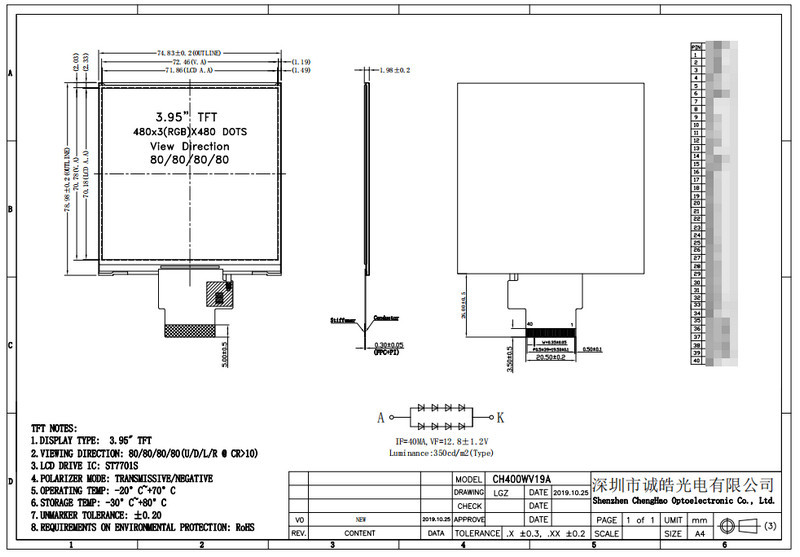

3. Drawings of Lcd Display

Notes:
(1) Display Type : 3.95"TFT
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ST7701
(4) Polarizer Mode : IPS/ Transmission / Normally Blcak
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail of Tft Display

* LCD name: 3.95" Serial Lcd Display Module 40 Pin SPI Interface IPS TFT Lcd Screen
* Part No.: CH400WV19A
* Size.: 3.95 inch

* With or without touch panel: No
* Support Touch Panel type: Capacitive or Resistive Touch Panel
* Display type: 3.95"TFT

* Color filter array: RGB vertical stripe
* Display colors: 65K / 262K /16.7M
* Resolution (pixels): 480(RGB)*480
* Viewing direction: 80/80/80/80
* Controller IC: ST7701S
* Display mode: IPS / Transmission / Normally Black
* Overall size: 74.83(W)*78.98(H)*1.98(T)mm
* Active Area: 71.856(W)*70.176(H)mm
* Luminance: 350 cd/m2
* Contrast: 800:1
* Interface type: SPI+RGB

* Operating Temperature : -20~ +70 ℃

* Storage Temperature : -30~ +80 ℃
