800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface

1. Specification of 800*480 capacitive touchscreen

2. Description of 800*480 tft lcd

ChengHao Display model CH700WV03A-CTA is a capacitive touch LCD module with a display area measuring 7.0 inch diagonally and a resolution of 800x3(RGB)x480 resolution.

The 7inch capacitive touchscreen lcd includes a touch panel (TP), control IC, back light (BL), tft lcd panel and FPC and other components, of which TP, BL, FPC can be customized according to customer requirements, please consult our customer service.

4. Quick Detail of 7 inch capacitive touchscreen

Diagonal Display Size: 7.0 inch
Interface Type: 24-Bit Parallel Digital RGB Interface
Resolution: 800 x 480 pixels
Touch Screen: Yes

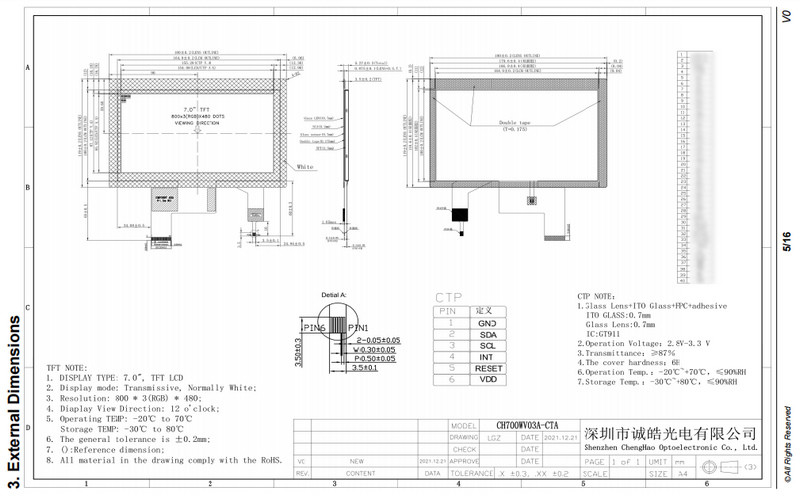

Viewing Area Dimensions:155.28*87.12*5.27 mm

Touch Screen Type: Capacitive
Backlight Type: white LED
Display Mode:Tn / Transmissive
Dimensions:180(W)×119(H)×5.27(T) mm

Display Matrix Technology: TFT
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +70°C
Brightness: 280 cd/m²
Number of Colours: 16.7 Million
Standards Met: CE, RoHS Compliant
Operating Temperature Range: -20 → +70°C
Contrast Ratio:500
Display Type: LCD TFT

5. Application of 7 inch tft lcd

* Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines, instrumentation, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment and other fields .
* Such as smart wearable devices (such as watches, fingertip pulse meters), car display devices (car central

control display, navigation display/headrest display, etc.), payment financial equipment (card reader, cash

register, etc.), customer terminal equipment (refrigerator, Coffee machine, smart rice cooker, etc.), elevator

display equipment (elevator digital display), industrial control equipment (industrial display), instrument

measuring equipment (detector, monitor), artificial intelligence equipment (smart robot), medical equipment

(heart rate monitoring display) ), smart home equipment (kitchen smoke machine), security identification

equipment (smart access control, punch card machine, etc.), vending equipment (vending machine), etc.
