High Brightness TFT Display 2.4 Inch 240x320 Small Lcd Touch Screen
1. Specification
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 2.4 inch TFT+RTP | -- |
| Dot arrangement | 240x320 | dots |
| Driver IC | ST7789 | -- |
| Module size | 42.72(W)×60.26(H)×3.35(T) | mm |
| Active area | 36.72(W)×48.96(H) | mm |
| Dot pitch | 0.153 (W)×0.153 (H) | mm |
| Operating temperature | - 20 ~ + 70 | ℃ |
| Storage temperature | - 30 ~ + 80 | ℃ |
| Back Light | White LED | -- |
| Weight | TBD | g |
2. Description
ChengHao Display model CH240QV53B-T is a color active matrix thin
film transistor (TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This model is composed
of a touch panel, a TFT LCD panel, a driving IC, a back-light and
FPC.
This TFT LCD has a 2.8 (vertical screen) inch diagonally measured
active display area with 240*320(RGB) resolution.
This touch panel is a resistive touch panel that uses a usb
interface and supports removal or replacement with a capacitive
touch panel.
The driver used for this project is the ST7789V and can display
262K/65K colors by R.G.B. signal input. The driver is mounted on
the glass and the interconnection via FPC including components to
drive the display module. Support 4 line 8 bit SPI interface.
In addition, FPC can also be customized according to customer
requirements, such as modifying back-light and FPC structure,
interface definition, etc.
RoHS Compliance & Halogen Free.

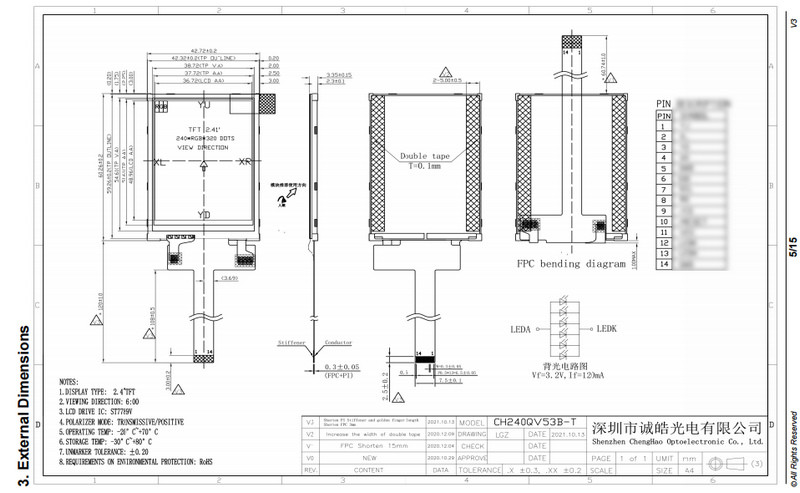

3. Drawing
4. Quick Detail
LCD type: 2.4”TFT
Dot arrangement:240(RGB)×320 dots
Color filter array: RGB vertical stripe
Display mode:TN / Transmission / Normally White
Viewing Direction: 6 o’clock
Gray Scale Inversion Direction: 12 o’clock
Driver IC: ST7789V
Module size: 42.72(W)×60.26(H)×3.35(T) mm
Active area: 36.72(W)×48.96(H) mm
Dot pitch: 0.153 (W)×0.153 (H) mm
Interface: 4-line_8bit SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 6 White LED In Parallel
Weight: TBD g
