Spi Lcd Display Module 3.5 Inch HVGA Vertical Screen Wide Temp

1. Specification

2. Description

Chenghao 3.5” IPS TFT Lcd (CH350HV47A) is a full viewing angle LCD screen with a 3.5 inch color display area, which supports the display of 320(RGB)×480 pixel video images. This 3.5” color lcd screen has 80/80 /80/80 full viewing angle, allowing users to read the screen at a viewing angle close to 80/80/80/80. External devices can interact with this display through the 4line 8bit SPI interface protocol.
If you want to know more about this 3.5 inch tft lcd, welcome to contact our online customer service.

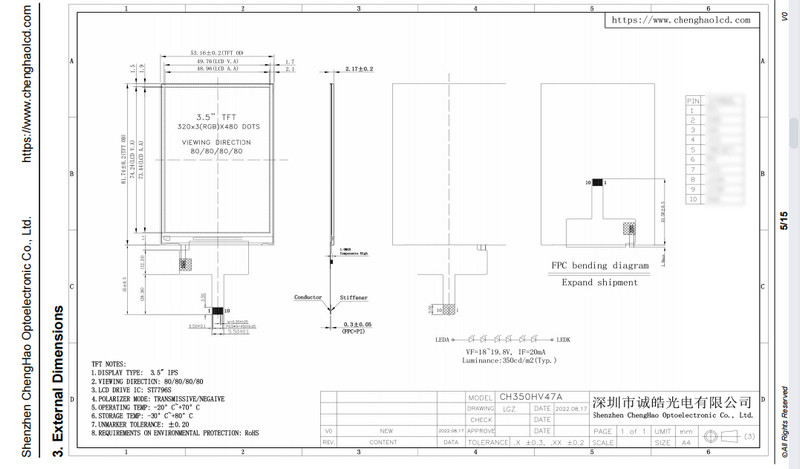

3. Drawing

Notes:
(1) Display Type : 3.5 inch TFT
(2) Viewing Direction : All
(3) Lcd Drive IC : ST7796S
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

Product Name: Spi Lcd Display Module

Model No: CH350HV47A

With or Without TP: Without

Support TP Type: CTP/RTP

LCD type: 3.5" TFT

Dot arrangement: 320*480

Color filter array: RGB vertical stripe

Display mode: IPS / Transmissive / Normally Black

Viewing Direction: ALL

TFT Driver IC: ST7796S

Color: 16M

Contrast: 800:1

Module size: 53.16(W)×81.74(H)×2.17(T) mm

TFT Active area: 48.96(W)×73.44(H) mm

Dot pitch: 0.153(W)×0.153(H) mm

TFT Interface: RGB

FPC Pin Number: 10

Operating temperature: -20 ~ +60 ℃

Storage temperature: -30 ~ +70 ℃

Back Light: 6 White LED

Weight: TBD g

5. Application

6. FAQ


Q1: Are you manufacturer ?
A: Yes, we are manufacturer.

Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.

Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.

Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.

Q6: What payment terms you accept?

A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
