4.3 Inch Color LCD Display 480x272 40Pin Small LCD Touch Screen
1. Specification
| LCD Name | 4.3 Inch Color LCD Display 480x272 40Pin Small LCD Touch Screen |
| LCD Size | 4.3 inch |
| Display Mode | Transmissive TFT LCD |
| Touch Panel | Resistive touch panel |
| Resolution | 480x272 dots |
| Outline Dimension | 105.5(W)×67.2(H)×3.0(T) mm |
| Active Area | 95.04(W)×53.856(H) mm |
| Brightness | 230 cd/m2 |
| Interface | 24-bit Parallel RGB Interface |
| Connector | 40 Pin FPC |
2. Description

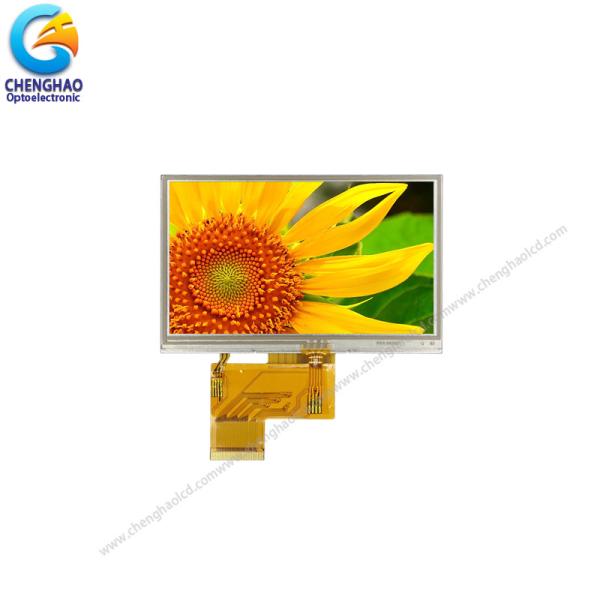

Chenghao Optoelectronic CH430WQ09A-T is a 4.3 inch color LCD
display with touch panel that supports human-computer interaction.
This 4.3 color LCD screen uses 24-bit Parallel RGB Interface to
communicate with external devices, and has passed the high and low
temperature test experiments, and can operate normally in an
environment with a temperature difference of -20~+70 °C.

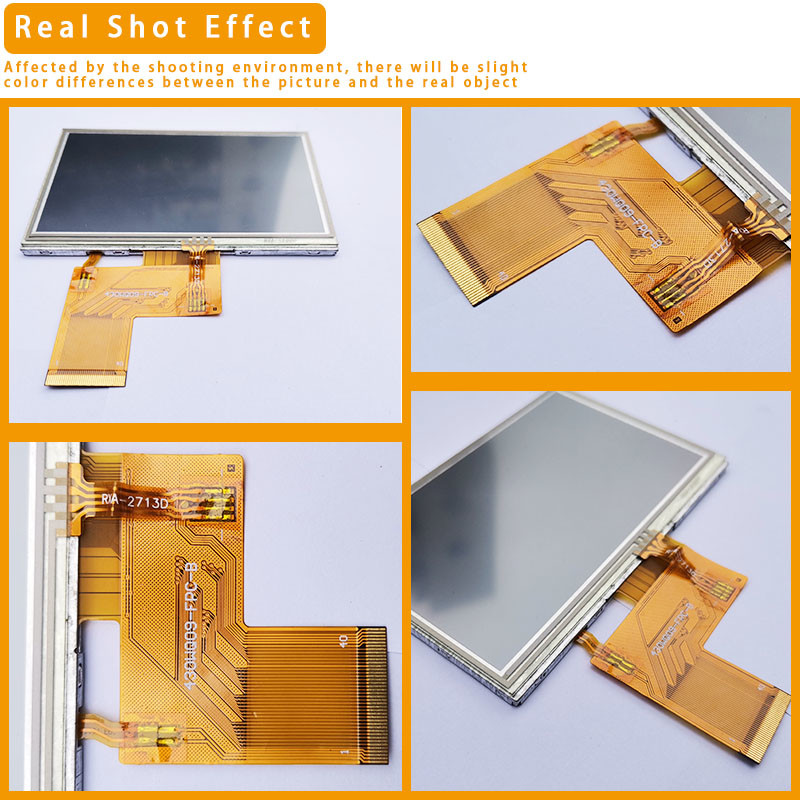

This 4.3 color LCD screen is made by the combination of lcd panel +
resistive touch panel. There is a 4.3 inch color display area of
the color LCD screen, which can display 480(RGB)x272 pixel video
animations. The lcd panel is a TN type TFT, the user must read the
screen information clearly with a viewing angle of 12 O'clock...
If you want to know more about this color LCD screen, you can get
more information by sending an email or contacting our online
customer service.
3. Drawings
Notes:
(1) Display Type : 4.3"TFT +RTP
(2) Viewing Direction : 12 o’clock
(3) Lcd Drive IC : ***
(4) Polarizer Mode : TRANSMISSIVE/POSITIVE
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Quick Detail
LCD type: 4.3”TFT
Dot arrangement: 480(RGB)×272 dots
Color filter array: RGB vertical stripe
Display mode: TN / Transmission / Normally White
Viewing Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
Module size: 105.5(W)×67.2(H)×3.0(T) mm
Active area: 95.04(W)×53.856(H) mm
Dot pitch: 0.198 (W)×0.198 (H) mm
Interface :24-bit Parallel RGB Interface
Operating temperature: -20 ~ +70 ℃
Storage temperature :-30 ~ +80 ℃
Back Light: 7 White LED
Weight:TBD g
5. Application
6. FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize
products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.
From material purchasing to product delivery, we have own
professional staff and procedures to prevent potential quality
risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours.
Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist
buying one set,welcome to take a sample for you check quality and
function.
once sample is confirmed, we could allow for a small mount of
orders(no quantity limitation) to be put into production and once
this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like
misuse.It depends on different products.
