1.9 Inch TFT LCD Capacitive Touchscreen 170*320 Resolution 30 Pin

1. Specification

2. Description

Chenghao Optoelectronic CH190QV01A-CT is a color LCD display that supports screen touch function, supports 8080-8bit MCU, 4-line 8bits SPI multiple interfaces, and can display 262K/65K colors. There is a 1.9 inch touch display area of this touch Lcd display module with a resolution of 170x320 and a full viewing angle (80/80/80/80), which can work in an environment with a temperature between -20~ +70°C Above 20000H.
CH190QV01A-CT can be modified and customized according to the requirements of customers. The content that can be modified includes FPC shape, screen brightness, interface, touch function removal or replacement, screen anti-glare, etc.

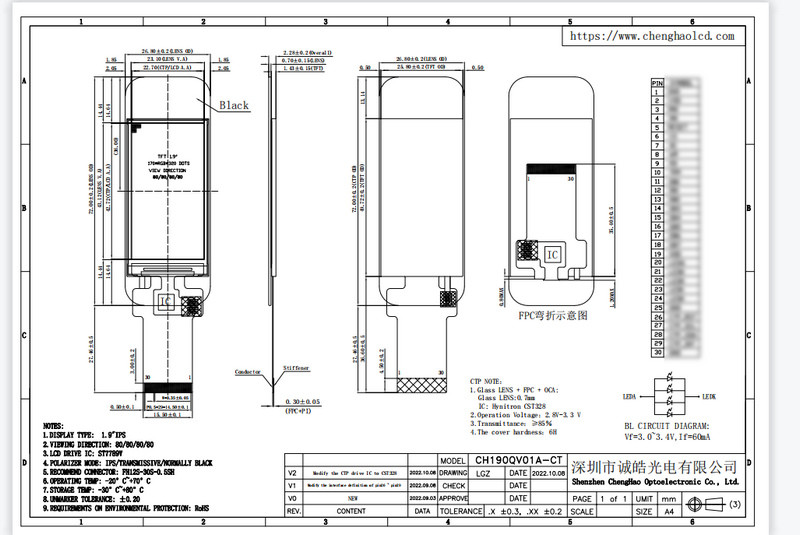

3. Drawings

Notes:
(1) Display Type : 1.9 inch TFT+CTP

(2) Viewing Direction : 80/80/80/80

(3) Operating Temp : -20~70 ℃

(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS

4. Qucik Detail

5. Application

6. FAQ

1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service, products have passed strict certification, and the buyer has good results.

2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.

3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.

4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.

5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
