10.1 Inch HD Lcd Display Panel 1280x800 Resolution IPS TFT LCD
Capacitive Touchscreen
1. Specification
| MODEL NO. | CH101WX01B-CT |
| Module type | 10.1 inch TFT+CTP |
| Display Mode | IPS/Transmissive / Normally Black |
| Number of Dots | 1280x800 |
| Viewing Direction | 85/85/85/85 |
| Module size | 253.82(W)×170.8(H)×4.85(T) mm |
| TFT Active area | 216.96(W)×135.6(H) mm |
| TFT Dot pitch | 0.1695(W)×0.1695(H) mm |
| Interface | LVDS |
| Backlight Type | White LED |
| Luminace | 300 cd/m2 |
2. Description
Chenghao Optoelectronic CH101WX01B-CT is a color LCD module that
supports multi-touch. The lcd display panel and touch panel support
LVDS and I2C interfaces respectively, and can operate normally in
an environment with a temperature ranging from -20 to +70°C More
than 20000H or more. When the input voltage is VF=9.0~10.5V,
IF=260mA, the brightness of the display can reach 300 cd/m2. There
is a 10.1 inch color display area of this multi-touch display,
which can display high-definition video images of 1280x800
resolution and so on. CH101WX01B-CT uses IPS display technology,
and the viewing angle of the screen is 85/85/85/85, which means
that as long as it is within the limit value of the viewing angle,
users can clearly read the screen from different angles.
For the vast majority of customers, screen customization is an
unavoidable option. This 10.1 inch tft display supports a variety
of content customization including screen brightness, FPC shape,
TFT interface, etc. If you have this need, please contact us by
email or online consultation.

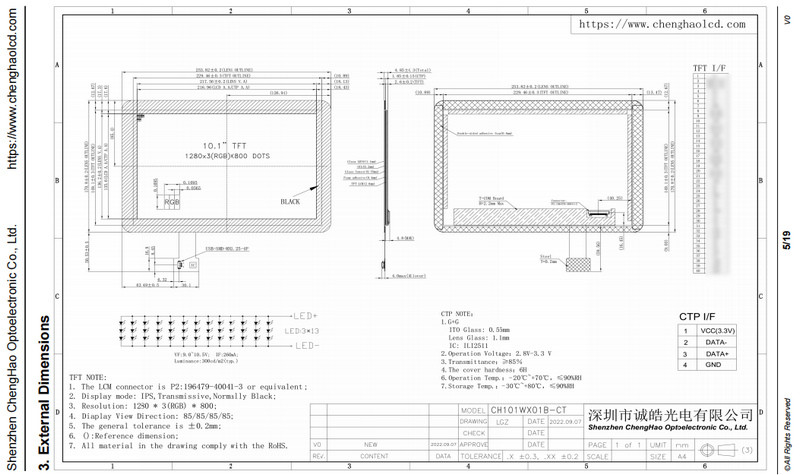

3. Drawings
Notes:
(1) Display Type : 10.1" TFT+CTP
(2) Viewing Direction : 85/85/85/85
(3) Lcd Drive IC : ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Quick Detail
LCM number : CH101WX01B-CT
Resolution : 1280× 3(RGB) × 800
Dot pitch : ******
Outline dimension : 253.82(W)×170.8(H)×4.85(T) mm
Active Area : 216.96(W)×135.6(H) mm
View angle| : R/L/U/D 85/85/85/85(Deg)
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : LVDS
Brightness : 300(cd/m2)
Tft driver IC : ***
Contrast ratio : 800
Backlight Type : White LED
Response time : ******(ms)
Display mode : IPS, Normally Black, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 16.7M
Backlight lifetime : 20k hrs(Min.)
With/without Touch Panel:Yes
Touch Panel Type:Capacitive touch panel
5. Application
