WVGA 5.0 Inch Small LCD Touch Screen Module 800*480 900 Nits Ips 40pin SPI

1. Specification

2. Description

Chenghao Optoelectronic CH500WV05B-CT-PA is a color TFT lcd module that supports screen touch. It mainly includes a color tft lcd display and a PCB driver board. This tft lcd display adopts 24bit RGB interface, the screen brightness is 900 cd/m2, and it supports sunlight readability. The screen adopts IPS display mode and supports 80/80/80/80 full viewing angle. There is a 5.0 inch active dot matrix area of this tft lcd display, which can display 16M colors and 800*480 pixel color screen. This PCB driver board is installed on the back of the tft lcd display, and its main function is to store the driver and provide an interface.
CH500WV05B-CT-PA is a customized color touch LCD module, which has passed strict CE, FCC, RoHS certification, can provide more than one year of quality assurance service, and can support modification and customization. The customized content includes driver board, FPC Shape, screen brightness, interface, touch function, screen anti-glare, etc.

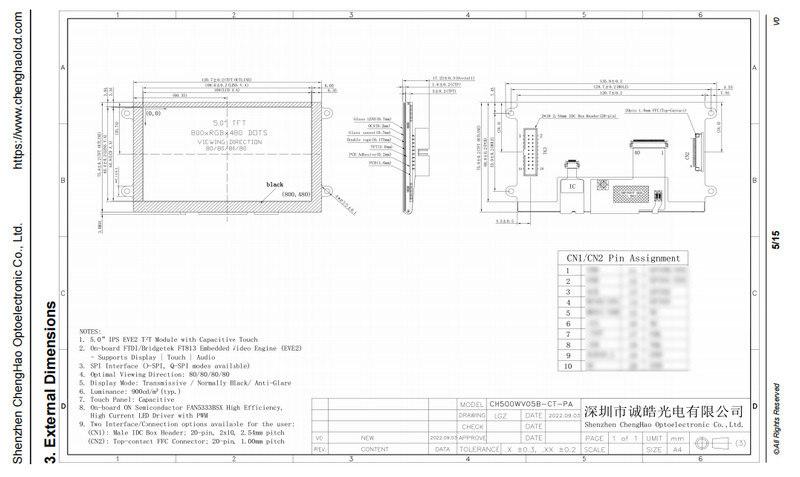

3. Drawings

Notes:
(1) Display Type : 5 inch IPS TFT
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ***
(4) Polarizer Mode : Transmissive/Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

LCD type: 5.0 inch IPS
Dot arrangement: 800×3(RGB)×480 dots
Color Pixel Arrangement: RGB vertical stripe
Display Mode: IPS / Transmissive / Normally black
Viewing Direction: 80/80/80/80
Interface: 24bit RGB interface
CTP type: G+G
Surface Hardness: 6H
CTP Driver IC: FocalTech: FT3427
CTP Interface: I2C
Driver IC: FT813
Interface: SPI
Module size: 135.8(W)×75.8(H)×17.23(T) mm
Active area:108(W)×64.8(H) mm
Dot pitch: 0.135(W)×0.135(H) mm
