Brand Name : | Chenghao Optoelectronic |
Model Number : | CH550FH01A-CTB |
Certification : | RoHS,CE、FCC |
Delivery Time : | 3~7 Days |
Payment Terms : | TT |
Supply Ability : | 300K pcs/month |

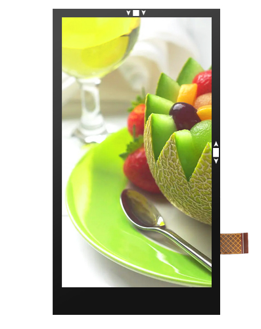

The CH550FF01A-CTB is an advanced 5.5-inch Full HD touch display module designed to meet modern display needs. The module has a high resolution of 1080*1920, ensuring clear image details and suitable for a variety of application scenarios, such as industrial control, medical equipment and smart home. Using IPS technology, the CH550FF01A-CTB provides a wide viewing angle and excellent color performance, making the display effect more vivid and realistic. The module has a brightness of up to 600 cd/m², ensuring good readability under different lighting conditions, especially suitable for outdoor use. It is also equipped with a capacitive touch panel and supports multi-touch, which enhances the user interaction experience and makes the operation more intuitive. | ||
![]() | ||
In addition, the module has an operating temperature range of -20 to +70℃ and a storage temperature range of -30 to +80℃, ensuring its stability in various extreme environments. The CH550FF01A-CTB has a size of 771395.39 mm and a compact design, which is easy to integrate into different devices. With flexible customization options, customers can adjust the design of the module according to their specific needs, further enhancing its market competitiveness. In short, CH550FF01A-CTB has become an important choice in modern display technology with its excellent display performance and wide application potential. |
The product features of CH550FF01A-CTB mainly include the following aspects:
* High resolution: The module provides a full HD resolution of
1080*1920, ensuring clear image details and suitable for a variety
of application scenarios.
* IPS display technology: Adopting IPS (plane switching)
technology, it provides wide viewing angle and excellent color
performance, making the display effect more vivid and realistic.
* Touch function: Equipped with a capacitive touch panel, it
supports multi-touch, enhances the user interaction experience, and
makes the operation more convenient.
* Brightness performance: The maximum brightness can reach 600
cd/m², ensuring readability under different lighting conditions,
suitable for outdoor and strong light environments.
* Temperature adaptability: The module has an operating temperature
range of -20 to +70℃ and a storage temperature range of -30 to
+80℃, ensuring stability in various extreme environments.
* Compact design: The module size is 771395.39 mm, and the active
and visible areas are both 68.04*120.96 mm, which is easy to
integrate into various devices.
* Customization options: Supports a variety of customization
services, including FPC design, backlight brightness adjustment,
and personalized design of touch panels to meet customers' specific
needs.
* Wide range of application areas: This module is suitable for
industrial control, medical equipment, smart home and other fields
to meet the diverse needs of modern display technology.
Through the above features, CH550FF01A-CTB demonstrates its
importance and wide application potential in modern display
technology.
Luminance | 600 Cd/m2 |
Display Mode | IPS / Transmissive / Normally Black |
Transmittance | ≥87% |
Operating Temperature | -20 ~ +70℃ |
Touch panel thickness | 1.6 Mm |
Viewing Direction | 80/80/80/80 |
Touch Panel Type | Capacitive |
Touch Panel Interface | I2C |
Lcd Interface | MIPI |
Storage Temperature | -30 ~ +80℃ |
>
This LCD module is ideal for a variety of different applications. It is also well suited for industrial applications such as automation systems and control panels, and can also be used in consumer electronics such as smartphones, tablets and laptops, and the CH550FH01A-CTB can also be used in medical devices, automotive displays and gaming consoles.
The CH550FH01A-CTB is an extremely versatile product that can be used in a variety of scenarios. It is ideal for use in outdoor environments as it has an operating temperature range of -20 to +70°C. This means that it can be used in almost any climate or weather conditions. It is also a great choice for indoor applications such as retail displays, digital signage and interactive kiosks.
Q1: What is the brand name of this product?
A1: The brand name of this product is Chenghao Optoelectronic.
Q2: Where is this product manufactured?
A2: This product is manufactured in Shenzhen, China.
Q3: What certifications does this product have?
A3: This product has RoHS, CE, and FCC certifications.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 100 pieces.
Q5: What is the delivery time for this product?
A5: The delivery time for this product is 3 to 7 days.
Q6: What are the payment terms for this product?
A6: The payment terms for this product are TT.
Q7: What is the packaging of this product?
A7: All the products are packed in the right way to keep it safe. For small sizes of products, we use tray + carton. For bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.
Q8: What is the supply ability of this product?
A8: The supply ability of this product is 300K pieces per month.
![]() |
